The Drying Principle of Commercial Dryer

Introduction to Commercial Dryers

The commercial dryer is a productive piece of equipment that is used to dry large amounts of clothing quickly. The combination of hot air circulation, drum rotation, and an intelligent control system forms the basis of its drying principle, effectively and quickly evaporating the moisture from garments. Gaining insight into the drying mechanism of commercial dryers may maximize energy use and increase use efficiency.

Hot Air Circulation System

● Core Drying Mechanism

The core drying principle of a commercial dryer is to use hot air to evaporate the moisture in the clothes. The heating system of the dryer heats the air to a preset temperature, usually through electric heating, gas heating, or steam heating. Driven by the fan, the hot air enters the drum and comes into direct contact with the clothes, thereby accelerating the evaporation of moisture.

● Heating Methods

❏ Electric Heating: Suitable for small commercial environments.

❏ Gas Heating: More efficient and suitable for large-scale washing needs.

❏ Steam Heating: Common in industrial-level places.

Regardless of the heating method, the purpose is to quickly heat the air to a suitable temperature so that the moisture can evaporate quickly in a high-temperature environment.

● Air Circulation System

During the drying process, hot air flows continuously through the circulation system to keep the temperature in the drum stable. The efficient air circulation system evenly distributes the hot air in the drum, ensuring that every piece of clothing is fully exposed to the hot air. This circulation method can dry large quantities of clothing in a shorter time and improve work efficiency.

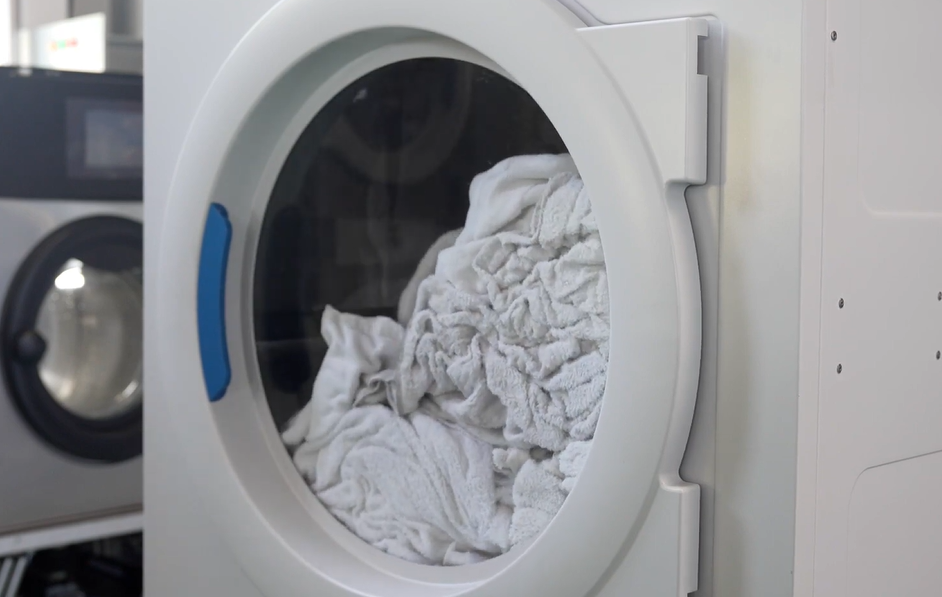

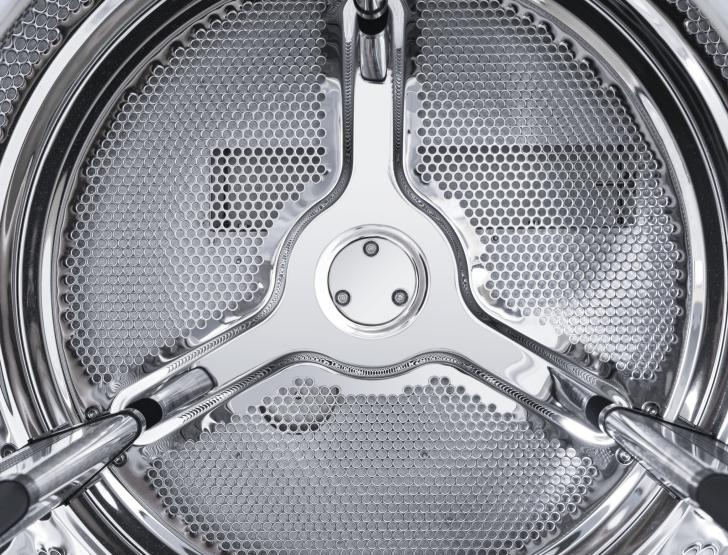

Rotation of the Drum

● Role of Drum Rotation

The drum is the main structure inside the dryer, and the clothes are placed in the drum and rotated with it. The rotation of the drum causes the clothes to tumble continuously, ensuring that the hot air can fully contact each piece of fabric. This rotational movement prevents the clothes from sticking together and increases the uniformity of drying.

● Uniform Drying

As the drum rotates, the clothes tumble continuously in it, which not only prevents the clothes from accumulating too much moisture in one place but also allows the hot air to contact every corner of the clothes. The uniform heat distribution accelerates the evaporation of moisture and improves the drying efficiency.

● Large Capacity Design

Commercial dryers usually have a large drum capacity and can handle more clothes at a time. This large capacity design enables them to adapt to the large-scale drying needs of places such as hotels, hospitals, and laundries.

Humidity and Temperature Control System

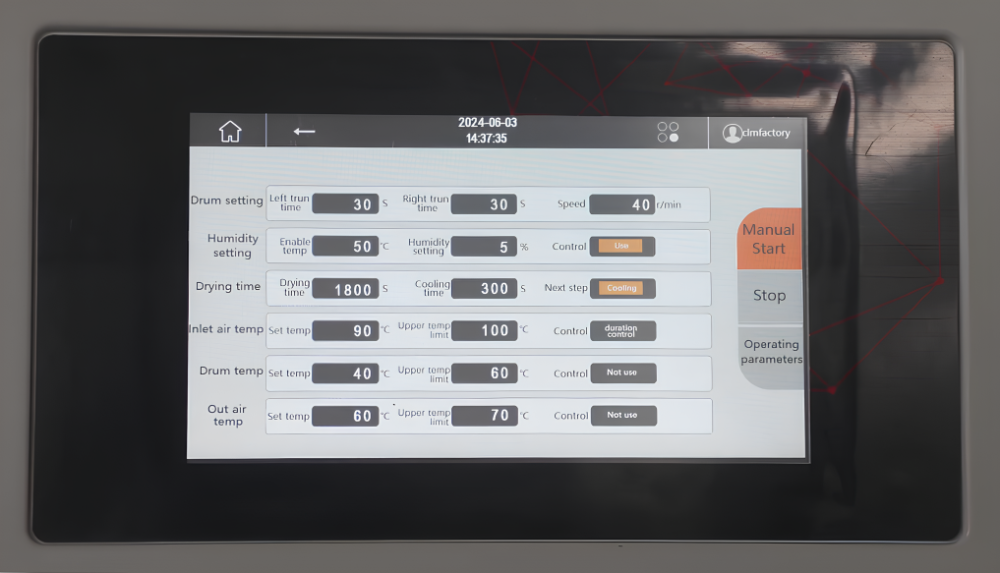

● Advanced Control Systems

Modern commercial dryers are equipped with advanced humidity and temperature control systems to optimize the drying process. These sensors monitor the humidity and temperature in the drum in real-time, ensuring that the device adjusts the drying process according to the actual dryness of the clothes.

● Humidity Sensor

The humidity sensor monitors the moisture content in the air in real time. When the sensor detects that the humidity in the drum drops to the set value, the dryer automatically adjusts the heating time or ends the drying process. This function avoids overdrying, which protects the clothes and saves energy.

● Temperature Sensor

The temperature sensor ensures that the air temperature inside the drum is kept within a reasonable range. If the temperature is too high, the dryer will reduce the heating intensity to avoid damage to the clothes; if the temperature is too low, the dryer will increase the heating power to ensure a smooth drying process.

Exhaust and Filtration System

● Moisture Removal

During the drying process, moisture evaporates from the clothes in the form of steam. Commercial dryers are equipped with an exhaust system to expel moisture and prevent the humidity in the drum from being too high and affecting the drying efficiency. The efficient operation of the exhaust system not only helps to maintain the dry environment in the drum but also further accelerates the evaporation of moisture from the clothes.

● Exhaust System

The system ensures that the drying process is continuously efficient by extracting moisture from the drum. By exhausting moisture vapor on time, the dryer can maintain a suitable drying environment and reduce drying time.

● Filters

Exhaust systems are also usually equipped with filters to capture impurities such as lint and fibers that fall off from clothes. If these impurities are not removed in time, they may block the exhaust port and reduce drying efficiency. Therefore, regular cleaning of the filter is also an important step to ensure the efficient operation of the dryer.
